STORION-TB187.5/375/500

187.5 / 375 / 500 kW

0.23-1.6 MWh

Outdoor

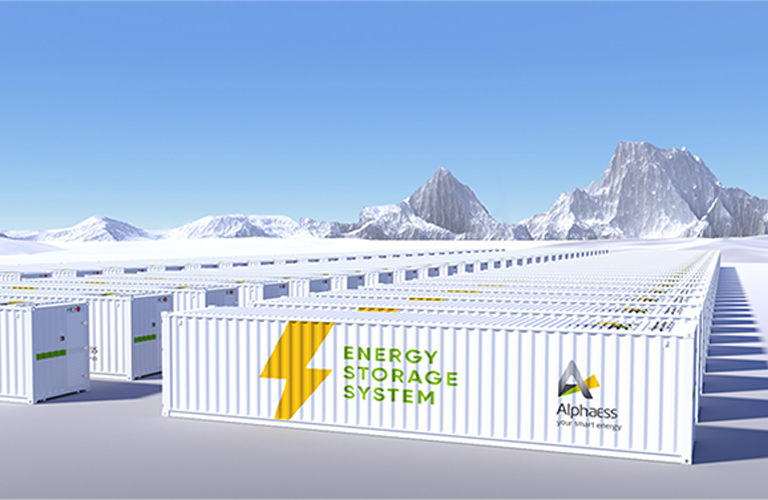

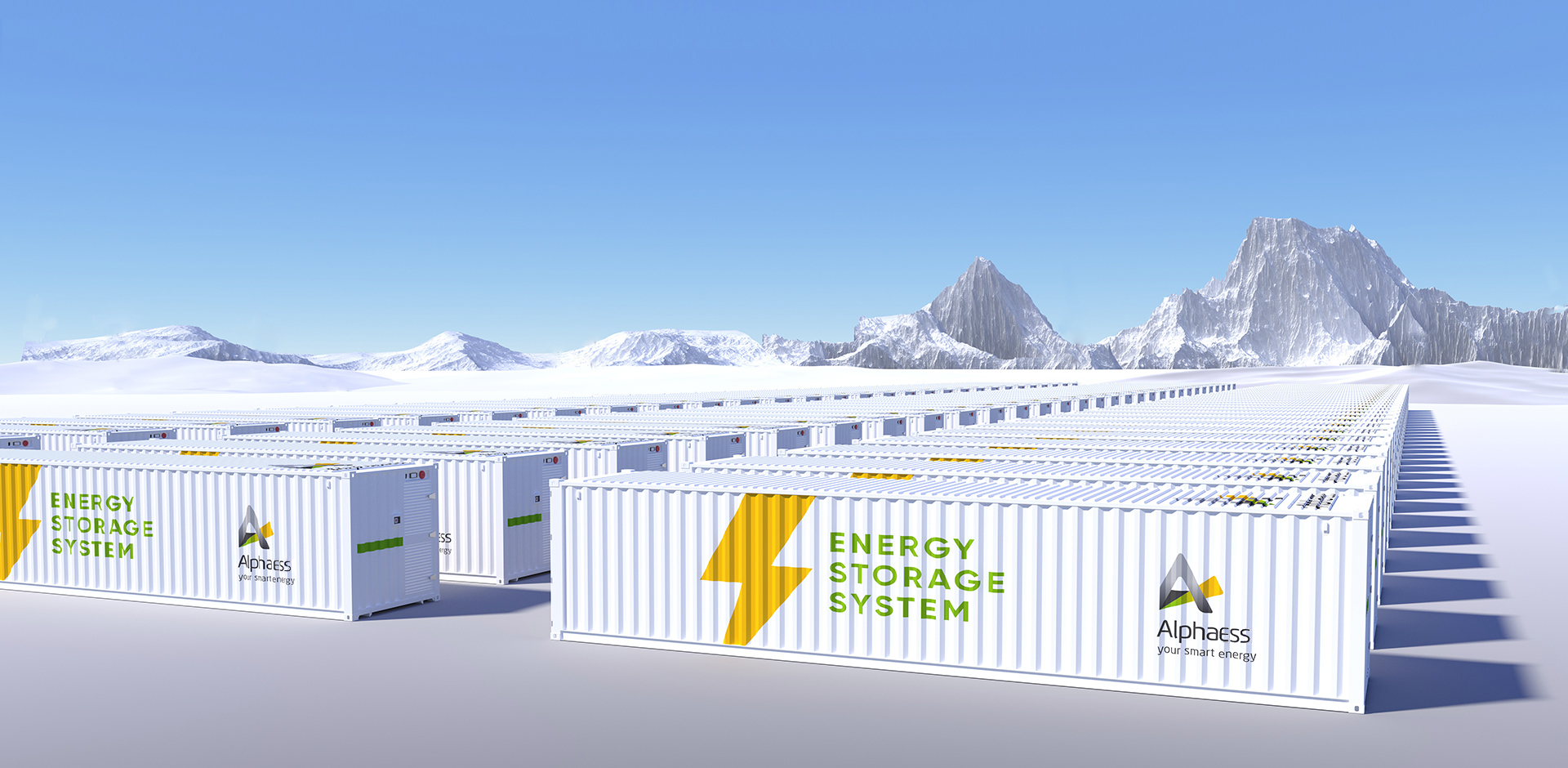

  • The STORION-TB187.5/375/500 Series 20ft / 40ft container is an AlphaESS standardized product for large-scale C&I applications. The container has built-in batteries, EMS, PCS, STS, transformer, air conditioner, fire extinguishing devices and other equipment. Customers can choose containers of different capacity to meet the required application scenarios. The STORION-TB500 system supports up to four 40ft-containers in parallel at a total capacity of 2MW/6.4MWh.

FEATURES

  • Modulardesign.svg

    Modular Design,
    Easy Installation & Expansion

  • 65f0191177288-598.svg

    On/Off-grid Switching
    Time ≤ 20ms

  • AC-coupled.svg

    DC-Coupled/
    AC-Coupled Available

  • gonglv_huaban1fuben14.svg

    Output Power Expandable
    up to 2MW

  • safe_huaban1-561.svg

    High Security & Control

  • jizhuangxiang.svg

    IP54, 20ft/40ft Container

SPECS

System Specifications

Datasheet

Rated Power

187.5 kVA

375 kVA

500 kVA

Battery Type

LFP (LiFePO₄)

LFP (LiFePO₄)

LFP (LiFePO₄)

Battery Energy Range

235~1612.8 kWh

235~1612.8 kWh

235~1612.8 kWh

PV Voltage Range

200~950 V

200~950 V

200~950 V

MPPT Number/String

6/2

6/2

6/2

Max. Efficiency

98.6%

98.6%

98.6%

Max. PV Oversizing

160%

160%

160%

Ingress Protection

IP54

IP54

IP54

Warranty

3 Years Product Warranty

3 Years Product Warranty

3 Years Product Warranty

Battery Specifications

Module Model

Rated Voltage

Rated Capacity

IP Protection

Cycle Life

Operating Temperature Range

  • M38180-S.png

    Module Model

    M38180-S

    Rated Voltage

    38.4 V

    Rated Capacity

    6.9 kWh

    IP Protection

    IP20

    Cycle Life

    80%EOL with ≥6000@1C 25°C

    Operating Temperature Range

    -10 °C ~ 50 °C

    Datasheet
  • h-303.png

    Module Model

    M38210-S

    Rated Voltage

    38.4 V

    Rated Capacity

    8.1 kWh

    IP Protection

    IP20

    Cycle Life

    ≥ 6000

    Operating Temperature Range

    -10 °C ~ 50 °C

    Datasheet
