SMILE-B3-PLUS

3 kW

5.04 ~ 30.24 kWh

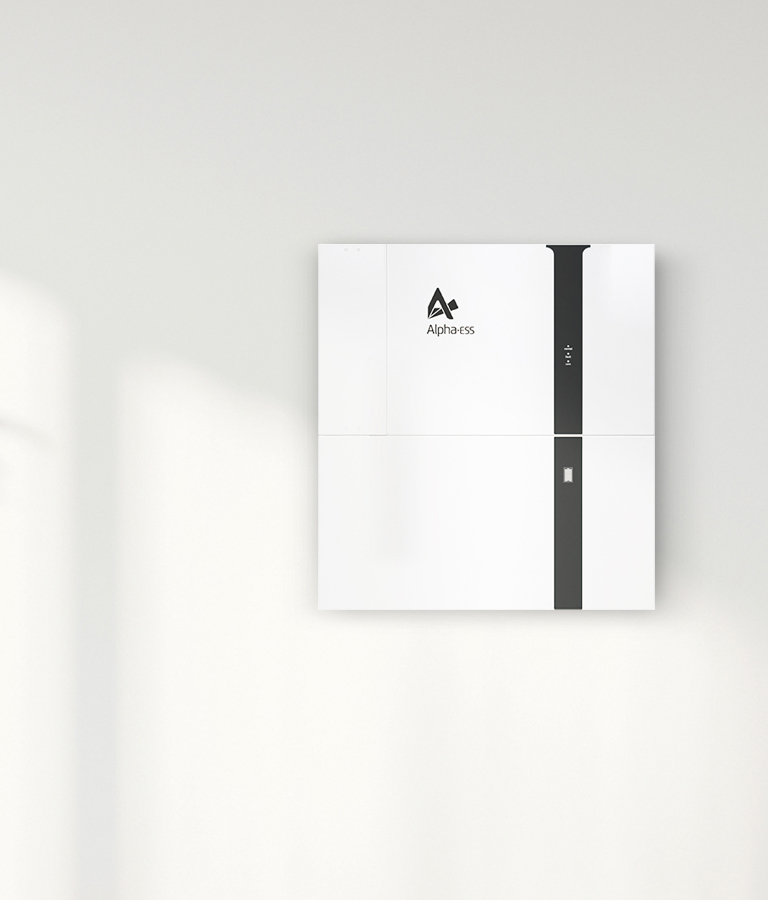

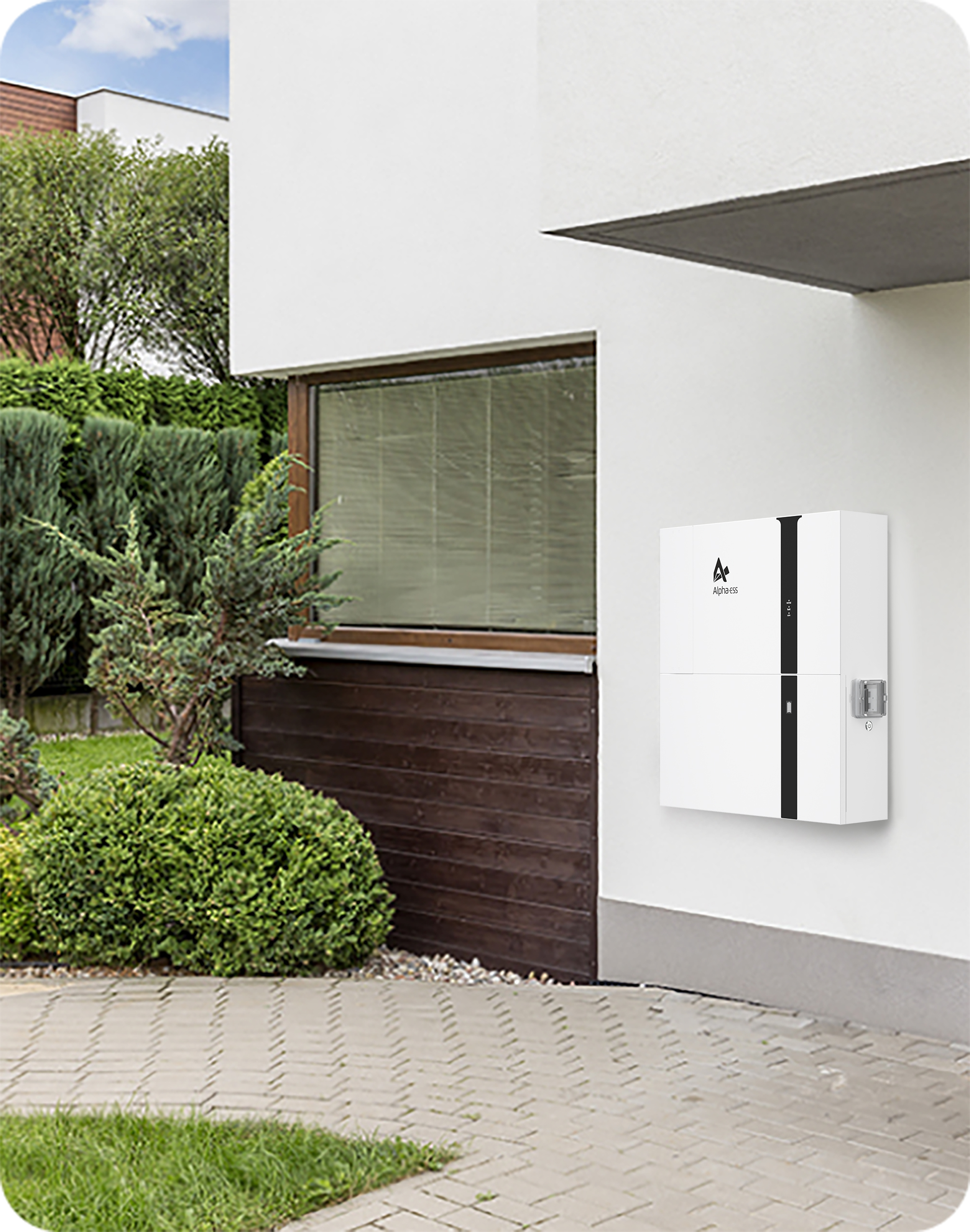

SMILE-B3-PLUS, specially designed for retrofit. Cost-effective, super easy to install, and capable for scale.
This 3kW AC-coupled solution with 5.04kWh built-in battery is available for all retrofit requirements, with a capacity expanded to 30.24 kWh

  • b9_icon1.svg

    Fit for All PV Inverters

  • All-in-one.svg

    All-in-one Module

  • VPPReady-769.svg

    VPP Ready

  • Powerful.svg

    Slim but Powerful

  • Inverters-422.svg

    Easy Installation & Maintenance


SPECS

  • Max. AC Output Power

    3 kW

  • Capacity Range

    5.04 - 30.24 kWh

  • Max. Charging/Discharging Current

    52.5 A

  • Depth of Discharge (DoD)

    95%

  • Dimension (W x D x H)

    640 x 250 x 725 mm

  • Operating Temperature Range

    -10 °C ~ 50 °C

  • IP Protection

    IP65 / IP21

  • Warranty

    5 Year Product Warranty,
    10 Year Battery Warranty

BATTERY MODULE

Lego-style modular design, easy installation and expansion to meet different requirements.


SMILE-BAT-5P

  • Module Capacity

    5.04 kWh

  • DoD

    95%

  • Expansion

    1 ~ 5 in parallel
