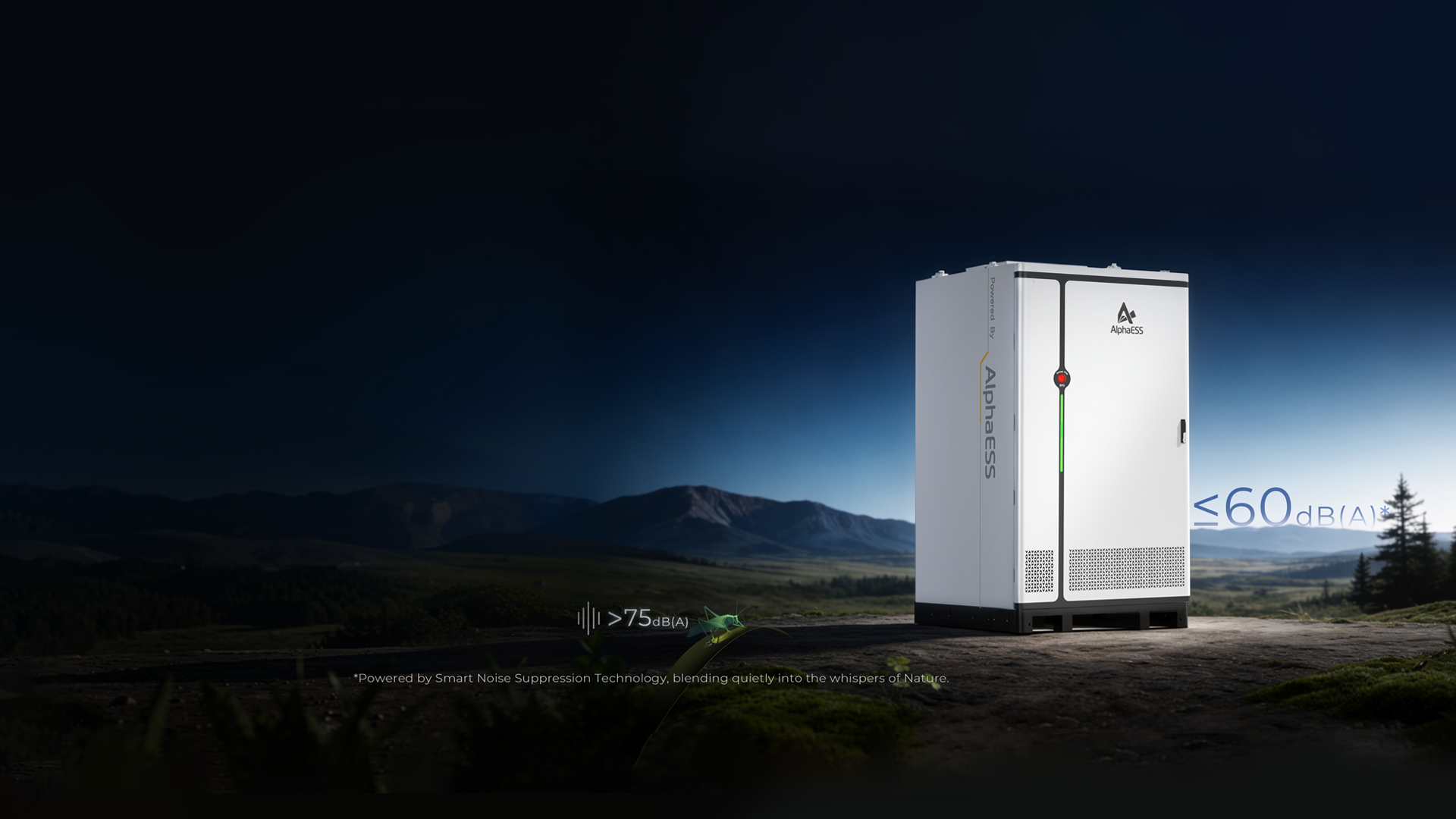

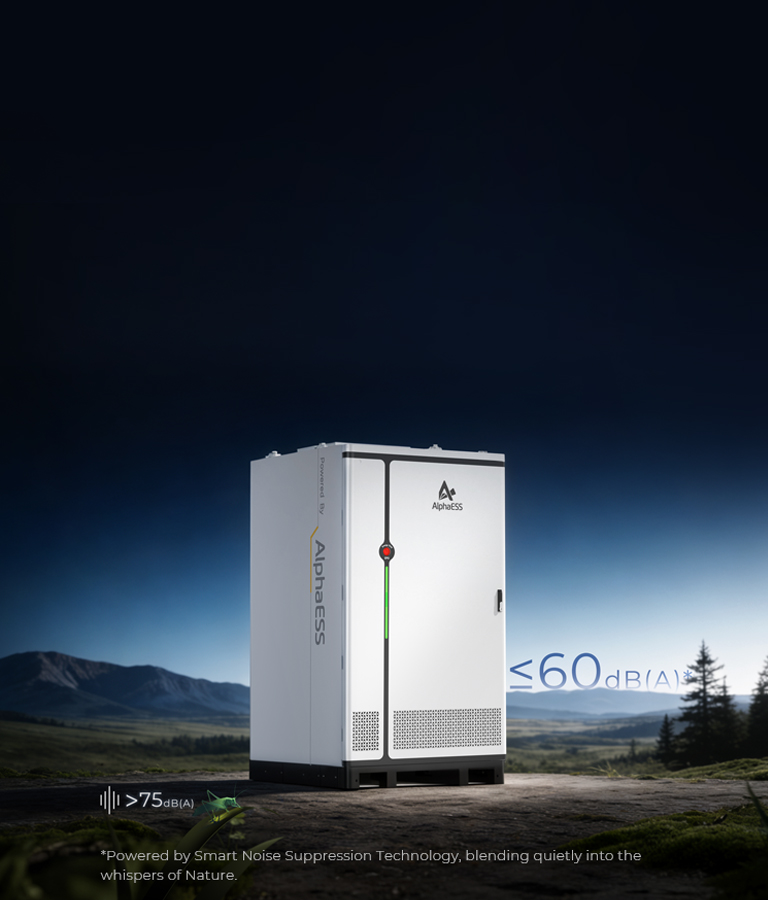

STORION-LC-TB150
150 kW
313 kWh
-
Engineered for premium commercial applications, the liquid-cooled TB150 operates under 60 dB(A) for ultra-quiet integration into urban environments. Featuring an exceptional lifespan of up to 12,000 cycles, it maximizes long-term ROI while ensuring elite resilience through UL9540A-certified fire safety. Complete with optional C5 anti-corrosion and seamless UPS black-start capabilities, the TB150 is the ultimate, future-ready power security platform for your business.
FEATURES
-
Ultra-Low Noise Design
-
Multi-Layer Fire Protection System
-
Up to 12,000 Battery Cycles
-
Integrated UPS & Black-Start Capability
-
C5 Anti-corrosion Protection(Optional)
SPECS
System Specifications
Module
TB150
Rated Power
150 kW
Operating Ambient Temperature Range
-30 ℃ ~ 50 ℃ (＞ 45 ℃ Derating)
Ingress Rating
IP67 (Battery Pack) IP55 (PCS)
Noise
≤ 60 dB(A)

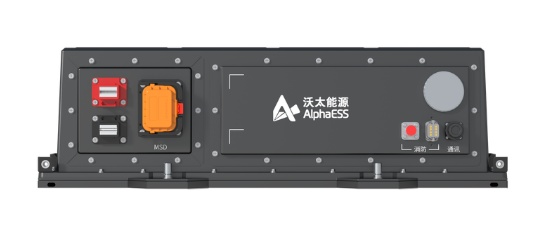

Battery Specifications
Module Model
Battery Type
Nominal Capacity
Rated Voltage
Operating Voltage
Dimensions (W x D x H)
-
Module Model
M166314-S
Battery Type
LiFePO₄
Nominal Capacity
52.24 kWh
Rated Voltage
166.4 V
Operating Voltage
140.4 ~ 187.2V
Dimensions (W x D x H)
810 * 1.125,5 * 237,5 mm
