STORION-M50

50 kW

108.4 ~ 217.0 kWh

Outdoor & Indoor

  • Powered by the World's first Stackable Battery and Unique BMS functionality, the M50 series gives users stability and more possibilities to handle varied needs. The modular design can easily fit into different site requirements with a simple stack and start installation.

FEATURES

  • All-in-one.svg

    Stackable Design for Quick Setup & Expansion

  • Safe&Reliable-673.svg

    IP66 Protection

  • HighEnergyCapacity.svg

    200% PV Input

  • 4MPPTforHigherPVInput-940.svg

    Reliable Operation with AutoPilot BMS Tech

  • Installation.svg

    Boost Lifetime by Auto-diagnostics & SOC Calibration

SPECS

System Specifications

Datasheet

Model

STORION-M50

Rated Power

50 kW

No. of MPPT Trackers

4

Protection Level

IP66

Warranty

10 Years Battery Performance Warranty

Dimensions (L x W x H)

530*880*290 mm

Battery Specifications

Module Model

Battery Type

Nominal Capacity

Rated Voltage

Operating Voltage

Max. Charging/Discharging Current

Dimensions (W x D x H)

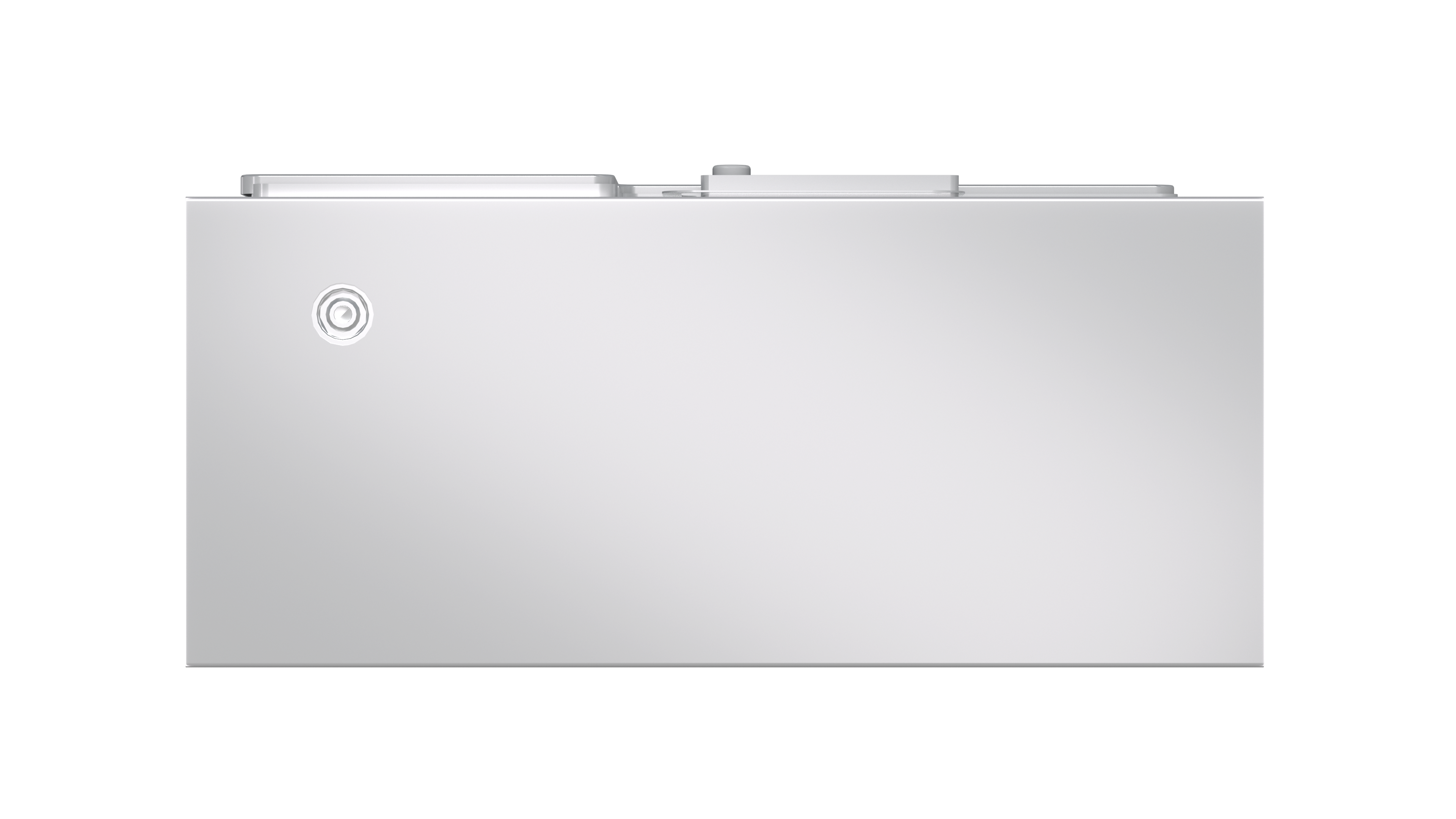

  • M38314-Sdianchi_zheng.png

    Module Model

    M38314-S

    Battery Type

    LiFePO₄

    Nominal Capacity

    12.06 kWh

    Rated Voltage

    38.4 V

    Operating Voltage

    32.4 ~ 42.24V

    Max. Charging/Discharging Current

    157 A

    Dimensions (W x D x H)

    550×615×242 mm
