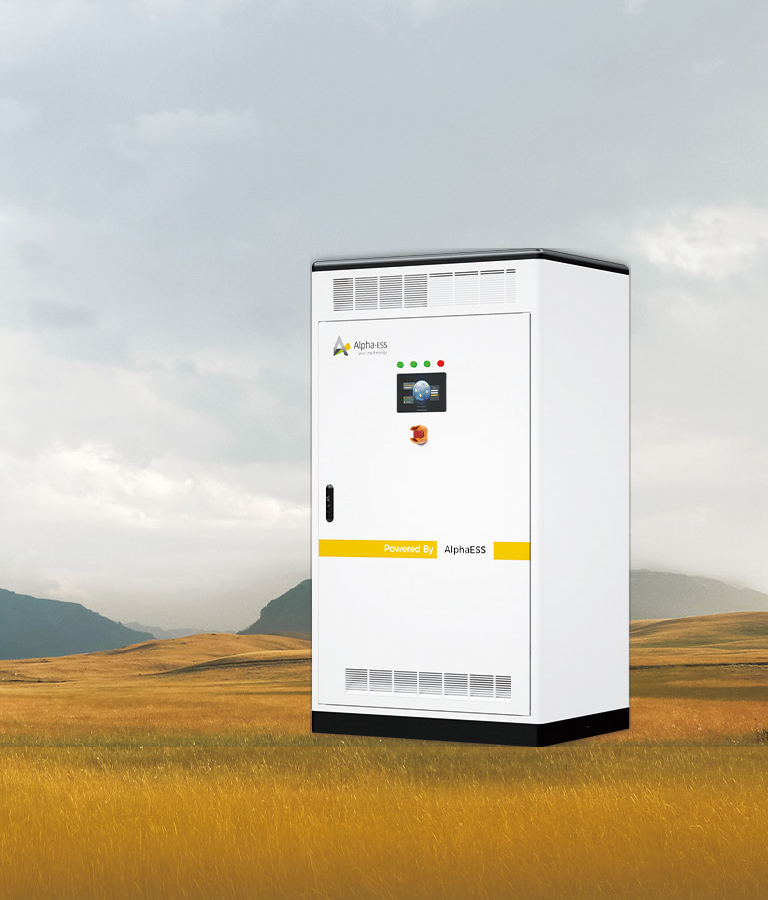

STORION-H30
30 kW
Max. 96.77 kWh
-
This air-cooling outdoor cabinet will soon be available on the market with a 30kW hybrid-coupled system, capable of both on-grid and off-grid operations. Additionally, H30 could be programmed to discharge and meet the energy demand on project basis, designed for small businesses. The most special design for this system is the plug & play battery module installation, which makes the installation process easier.
FEATURES
-
Safe & Reliable
-
High Integration
-
Advanced Air
Cooling Technology -
Multiple Options
Charging/Discharging Rate: 0.25p~1p -
Multiple Operation Mode
Automatic On/Off-Grid
Switching within 30ms -
Easy Battery Installation
Plug and Play without
Cable Connection -
High Flexibility
Support Parallel Connection
on DC/AC Side
SPECS
System Specifications
Model
STORION-H30
STORION-H30-O
Rated Power
30 kW
30 kW
Max. Input Power
60 kW
60 kW
Protection Level
IP20
IP54
Operating Temperature Range
20°C ~ 30°C
- 40°C ~ 50°C
Dimensions (L x W x H)
1100 x 900 x 2000 mm
1200 x 900 x 2160 mm
Battery Specifications
Module Model
Battery Type
Nominal Capacity
Rated Voltage
Operating Voltage
Max. Charging/Discharging Current
Dimensions (W x D x H)
-
Module Model
M7790-S
Battery Type
LiFePO₄
Nominal Capacity
6.912 kWh
Rated Voltage
76.8 V
Operating Voltage
72 V ~ 84.48 V
Max. Charging/Discharging Current
90 A
Dimensions (W x D x H)
326 x 654 x 250 mm
-
Module Model
M38210-SC
Battery Type
LiFePO₄
Nominal Capacity
8.064 kWh
Rated Voltage
38.4 V
Operating Voltage
36 V ~ 43.2 V
Max. Charging/Discharging Current
105 A
Dimensions (W x D x H)
325 x 658 x 232 mm
