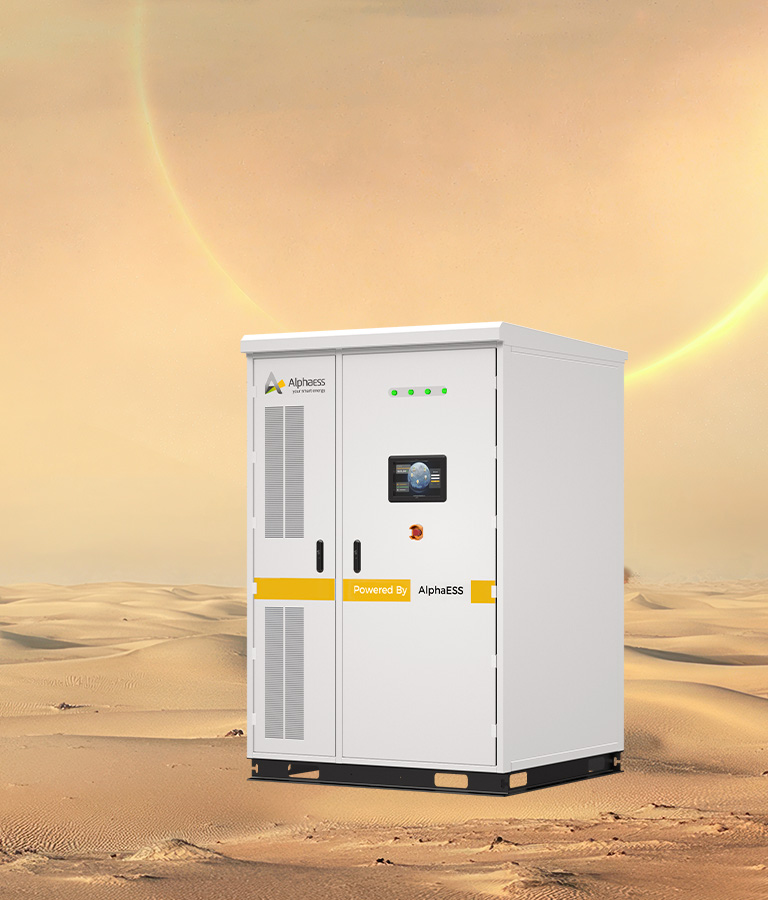

STORION-LC-200
Battery Cabinet (Liquid Cooling)
372.7 kWh
-
This outdoor battery cabinet incorporates advanced liquid cooling technology. With its high level of system integration, it offers easy installation and enhanced efficiency. The energy storage cabinet is equipped with multiple intelligent fire protection systems, ensuring optimal safety. Additionally, it is scalable up to 372.7 kWh, allowing for flexible layout options. These make the STORION-LC-200 the ideal choice for small and medium-sized businesses.
FEATURES
-
Flexible Layout
-
High System Integration
-
High Energy Density
-
Intelligent Heat
Management Strategy -
System-wide Temperature
Difference within 3°C -
Safer Intelligent
Fire Protection System
SPECS
System Specifications
Nominal Capacity
372.7 kW
IP Protection
IP54
Dimensions (L x W x H)
1700 x 1505 x 2453 mm
Battery Type
LiFePO₄
Application Model
Outdoor Cabinet
Battery Specifications
Module Model
Rated Voltage
Module Capacity
Cycle Life
Operating Temperature Range
-
Module Model
M166280-S
Rated Voltage
166.4 V
Module Capacity
46.6 kWh
Cycle Life
≥6000@ (0.5C 25°C)
Operating Temperature Range
-30 °C ~ 50 °C
