PV Oversizing Guide 2025: How to Maximize Solar Panel ROI

2025-08-08

Maximizing the cost efficiency of a PV installation is crucial for homeowners looking to recover their investment as quickly as possible. For installers, it's an important argument to win over customers for solar. PV oversizing (also known as solar oversizing or overdimensioning) is a proven strategy that can increase solar energy production while dramatically improving return on investment (ROI). In this guide, we'll delve into the advantages of PV oversizing and explore the key considerations that make this strategy a game-changer for residential solar installations.

What is PV Oversizing

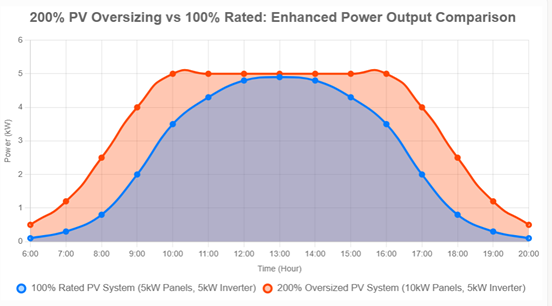

PV oversizing refers to installing more solar panels than the rated capacity of the solar inverter. For example, installing 10kW of solar panels with a 5kW inverter creates a 200% oversizing ratio.

PV oversizing enhances system performance by ensuring the inverter operates closer to its maximum capacity for longer periods. In real-world conditions, solar panels rarely achieve their rated peak output due to factors like suboptimal sunlight angles, temperature increases, or partial shading. By installing additional panels, the system can generate more DC power, even in less-than-ideal conditions, allowing the inverter to convert a higher proportion of available energy into AC power. This is particularly effective during early mornings, late afternoons, or cloudy days, when light intensity is lower.


Why Choose PV Oversizing?

Lower Costs, Higher Energy Output

With the ongoing decrease in cost per watt peak (Wp) of PV panels over recent years, the marginal cost of adding extra panels is relatively low compared to the significant increase in energy output. This cost-effectiveness proposition becomes even more attractive as panel prices continue to decline.

Meeting Growing Energy Demands

The rising popularity of electric vehicles and heating systems has made the need for additional cheap solar energy generation more pressing. Especially in single-phase installations where inverter capacity is limited to 5-6 kW on the AC side, PV oversizing becomes essential to maximize system potential.

Extended Power Generation Window

Installation scenarios with extra panels in east/west-oriented setups or differently oriented roof surfaces benefit significantly from PV oversizing. These additional panels enable the system to start generating electricity earlier in the morning and continue producing power later into the evening.

This extended production window aligns more closely with peak household energy demand periods - typically in the morning and evening - thereby maximizing self-consumption and increasing overall system efficiency. This flexibility addresses the common mismatch between peak solar production (midday) and peak household consumption (morning and evening).

Addressing Performance Degradation

Solar panels experience a gradual efficiency decline over time - this is an unavoidable physical phenomenon. PV oversizing strategy pre-configures additional generation capacity to ensure the system maintains high energy output throughout its operational lifespan, extending the effective investment return period and providing more stable, long-term benefits for homeowners.

Key Technical Considerations for Successful PV Oversizing

Selecting a high-quality inverter is absolutely essential for successful PV oversizing implementation. The inverter's internal components must be capable of handling increased loads and voltage fluctuations to ensure system reliability and longevity.

Rapid Response Capabilities and Advanced Shading Optimization

The speed of the inverter's control system is crucial. In situations of rapidly changing irradiance, such as partial cloud cover, the inverter must promptly adjust voltage to optimize output. Advanced systems like the AlphaESS SMILE-G3 series residential energy storage system utilize MPPT shadow curve scanning to continuously optimize performance.

Oversizing Limitations

Different manufacturers impose specific limits on oversizing ratios to protect system integrity. These guidelines must be strictly followed to prevent potential damage. The AlphaESS SMILE-G3 series supports up to 200% oversizing ratio, providing exceptional design flexibility for installers and homeowners.

Complex Roof Adaptability

With 2 MPPT, the SMILE-G3 series supports multi-directional or complex roof designs, making it ideal for carports or system expansion scenarios. This flexibility ensures maximum energy harvest regardless of installation constraints.

Intelligent Monitoring and Maintenance

PV oversizing systems operate at much higher power levels and complexity than standard installations, intelligent monitoring and maintenance absolutely crucial for protecting the investment.

The AlphaESS App provides comprehensive data analysis, yield visualization, and comparison functions, enabling both users and installers to monitor system performance effortlessly. This transparency ensures optimal system operation and quick identification of potential issues.

Advanced diagnostic capabilities automatically detect faults and notify users, combined with AlphaESS's localized after-sales service network to ensure rapid problem resolution and minimal system downtime.

Conclusion:

PV oversizing represents the future of residential solar energy - maximizing production, accelerating payback, and providing superior long-term value. With advanced systems like the AlphaESS SMILE-G3 series supporting up to 200% oversizing capacity, homeowners can achieve unprecedented energy independence and cost savings.
